VarioS 10（high pressure rated pump）

“ Engineered for pressure rated applications ”

Similar to the VarioS skimmer pump, this VarioS 10 circulation pump features a detachable controller, high quality ceramic shaft and bearings to reduce wear and tear, and the latest variable speed flow technology for refined control, enhanced performance, energy-efficiency and safer operations.

Product: Reef Octopus (RO) Direct Current (DC) Circulation Pump

Series:Circulation Pump

Model No.: VarioS 10

Features & Benefits

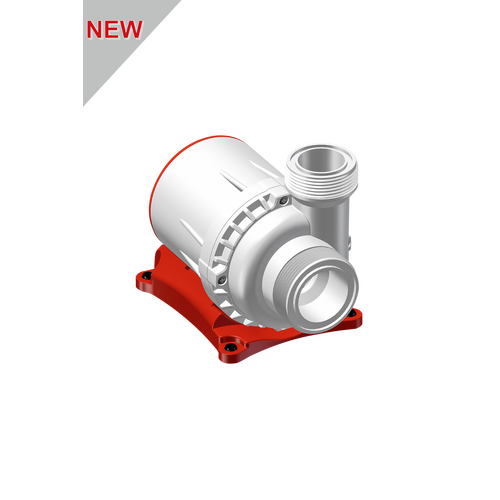

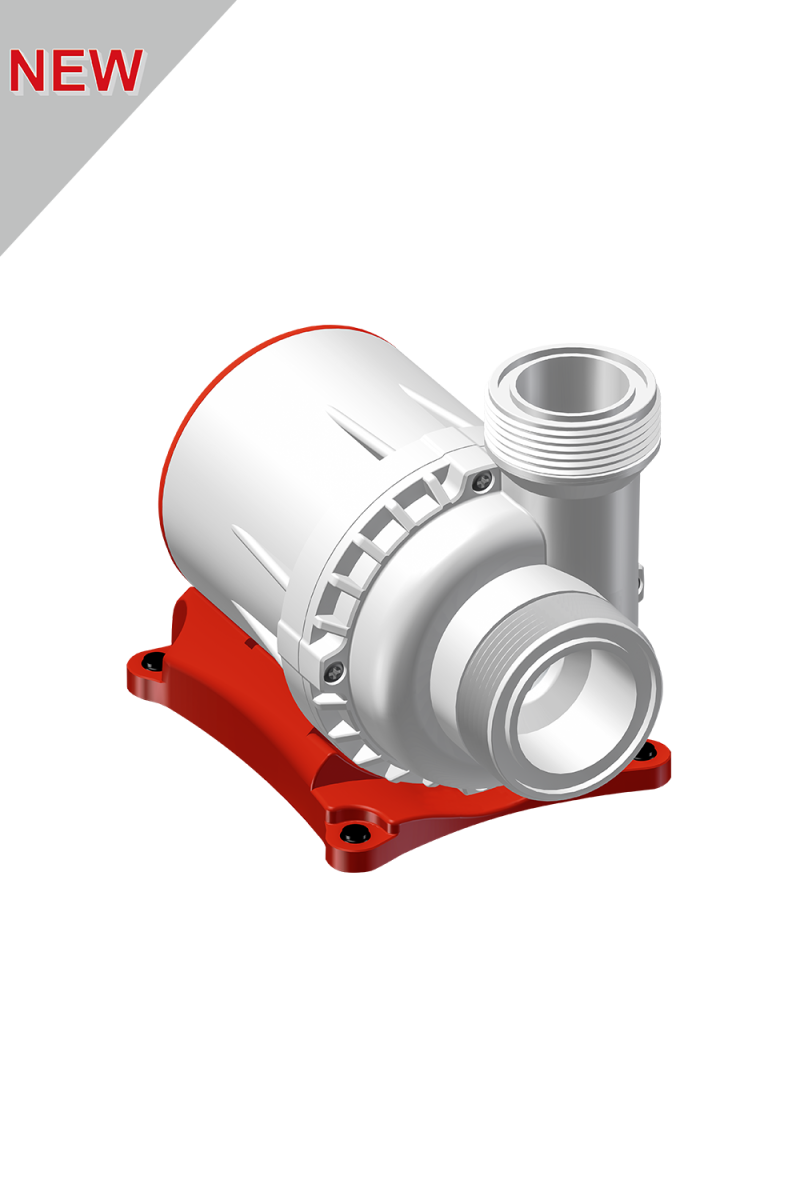

VarioS 10 Circulation Pump

Controller module with 90 variable speed control settings
Engineered for high pressure applications
High quality ceramic shaft and bearings for a more durable and quieter operation
Rotatable outlet volute
In-built circulating and intricate cooling mechanism for prevention of overheating of the pump
Auto shutdown system upon detection of electric circuit abnormalities
0-10V external controller connection
Float switch capability*
5 minutes delay timer can be activated
Dual feed model（15 or 60 mins）
DC 36V for safer operations
2 years warranty for pump motor only**

Overview

VarioS 10 Circulation Pump

Unlike the vast majority of circulation pumps which uses alternating current (AC), our VarioS 10 pump boasts several key advantages over traditional AC pumps, namely, higher energy efficiency, safer operations at a working voltage of 36V, less heat produced with every volume of water flow and most notably, the variable speed control to adjust the flow rate.

Enhanced Control

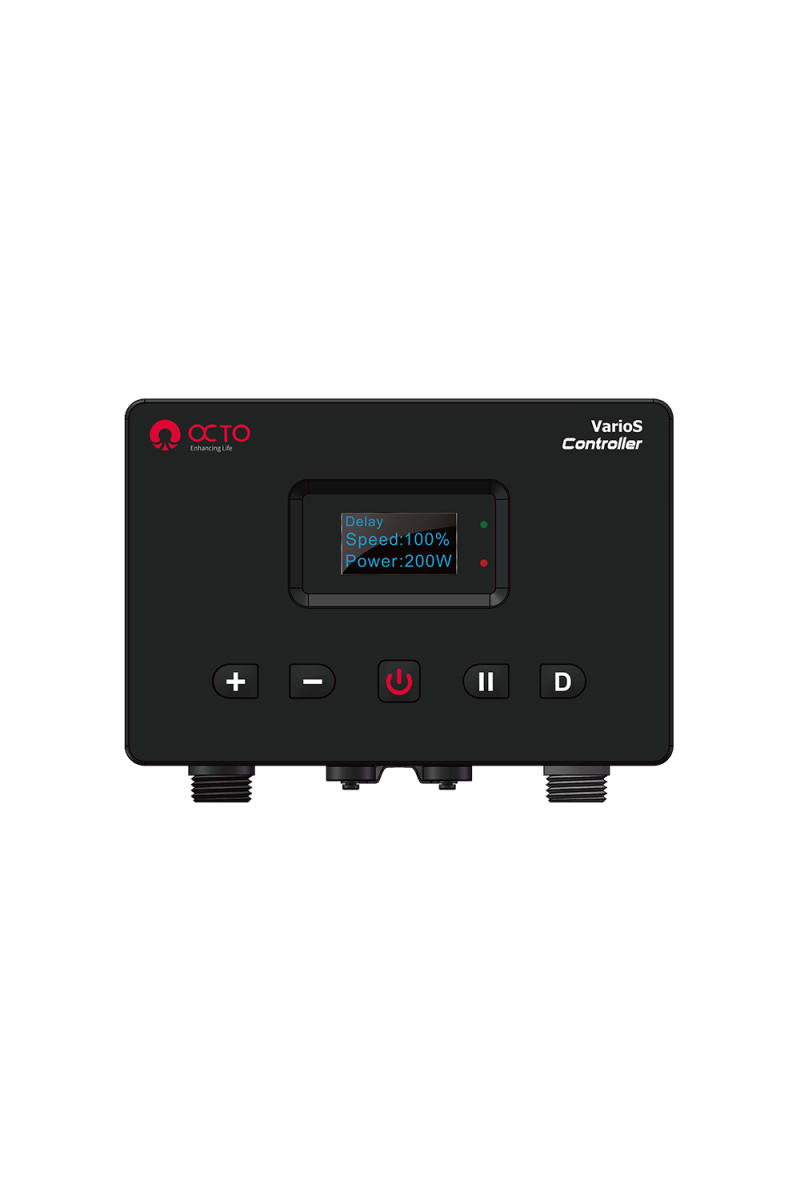

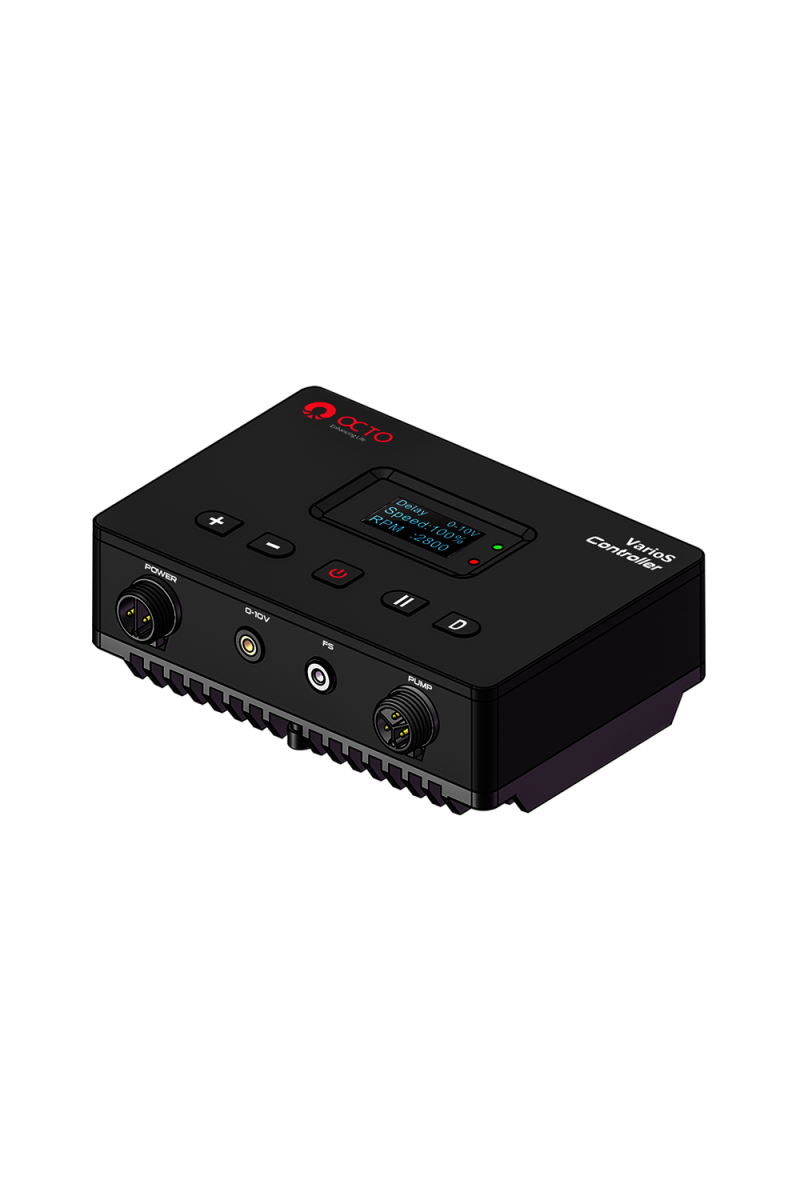

With the controller, user has full control over the flowrate by selecting 90 preset speed settings, indicated within by its built-in display panel, which also allow the user to view both the wattage and RPM of the pump in real time. A 15 or 60 minute feed mode can also be engaged or disengaged with the push of a button.

A rotatable output volute orientation allows for adjustment horizontally or vertically for placement flexibility.

Under normal usage, our entire range VarioS pump has an expected lifespan/product life expectancy of 10 years.

4 other models available – VarioS 2 (24V),VarioS 4(24V), VarioS 6(36V) and VarioS 8(36V) .

VarioS 10 is designed for high pressure applications.

Warranty:

2 years for pump

What's included

		VarioS 10
Article	Items	Model No.	Qty
1	Pump body	—	1
2	Power adapter （DC36V/7.0A)	—	1
3	Power cord	—	1
4	Controller	3010108003	1
5	Controller mounting	4010108001	1
6	Power adapter mounting	4010108002	1
7	Threaded Coupling-Male (40mm)	1042000013	1
8	Union Flange 40mm (1-1/4″)	—	1
9	Union O Ring (42*4)	1050100092	1
10	Threaded Coupling-Male (50mm)	1042000014	1
11	Union Flange 50mm (1-1/2″)	—	1
12	Union O Ring (50.8*4.6 )	1050100093	1
13	Intake Strainer	4010108003	1
14	Pump Motor	—	1
15	Pump base	1042600004	1
16	Rubber feet	1050200003	4
17	O Ring （100*3）	1050100075	1
18	O Ring	1050100101	1
19	Bearing	1080200010	1
20	Rotor	3010108004	1
21	Volute	1042600003	1
22	Screw （M5*25)	1060300027	4

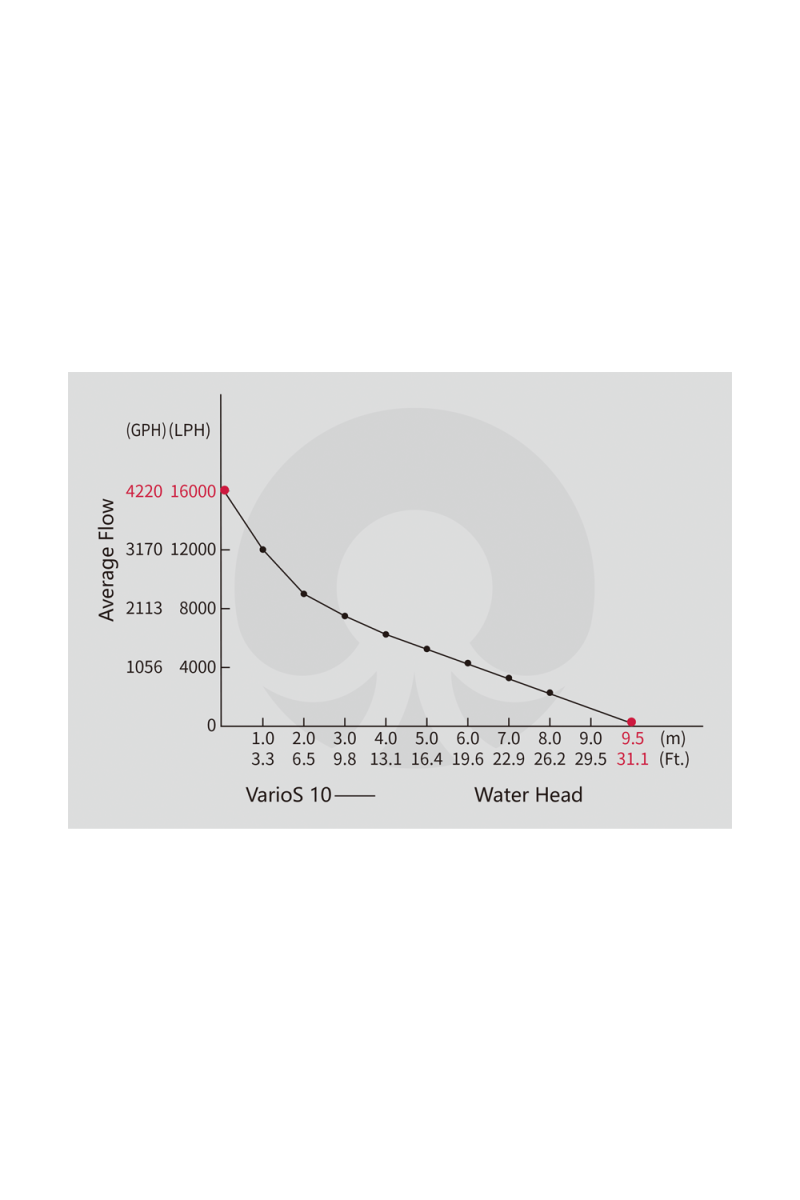

Technical Data

VarioS 10 Circulation Pump

Product	Power	Wet/Dry	Power	Max Head Height		Maximum Flow Rate		Connection Size		Freshwater/Marine
			W	m	Ft.	LPH	GPH	Inlet	Outlet
VarioS 10	DC36V	Both	200	9	29.5	16000	4220	Ф50 (1-1/2″)	Ф40 (1-1/4″)	Both
