OCTO OP-2+ Pulse Wave Pump Wifi Edition


Aquariums Australia Pty Ltd is a wholesale only business, please login to see pricing and make purchases


OCTO OP-2+ Wave Pump Wifi Edition

Features & Benefits

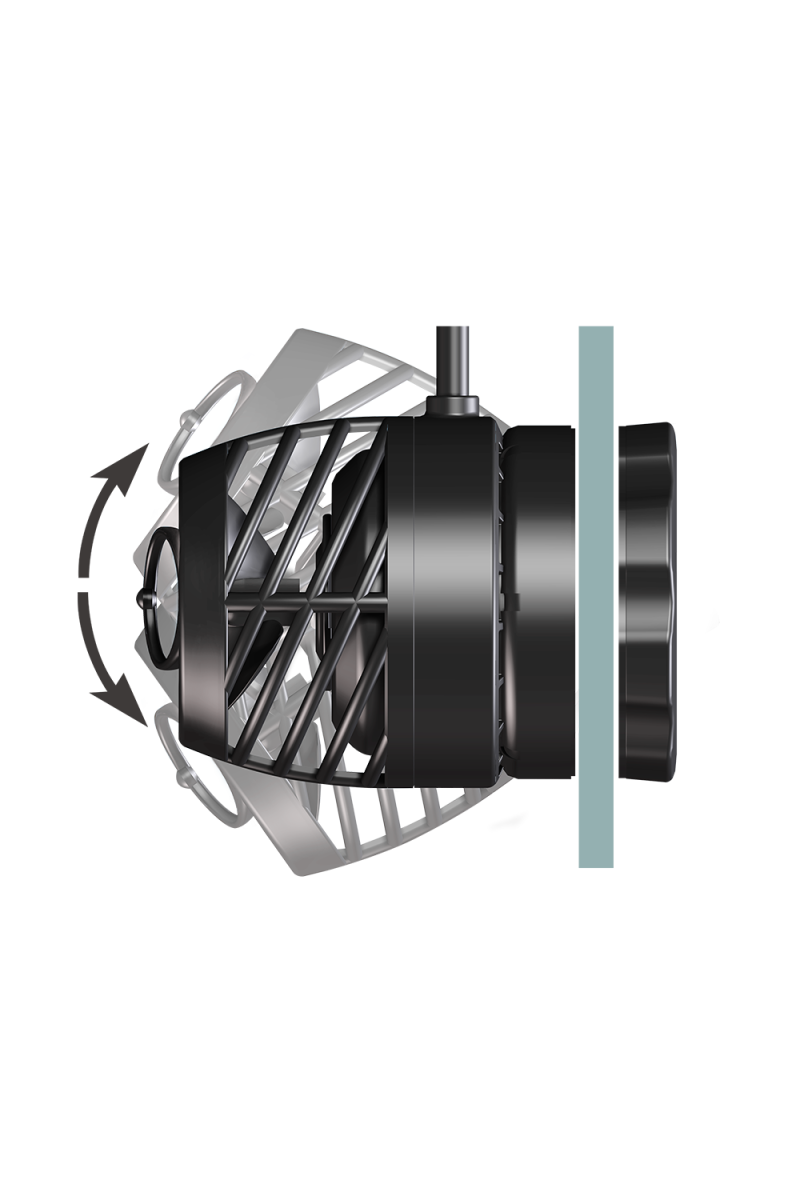

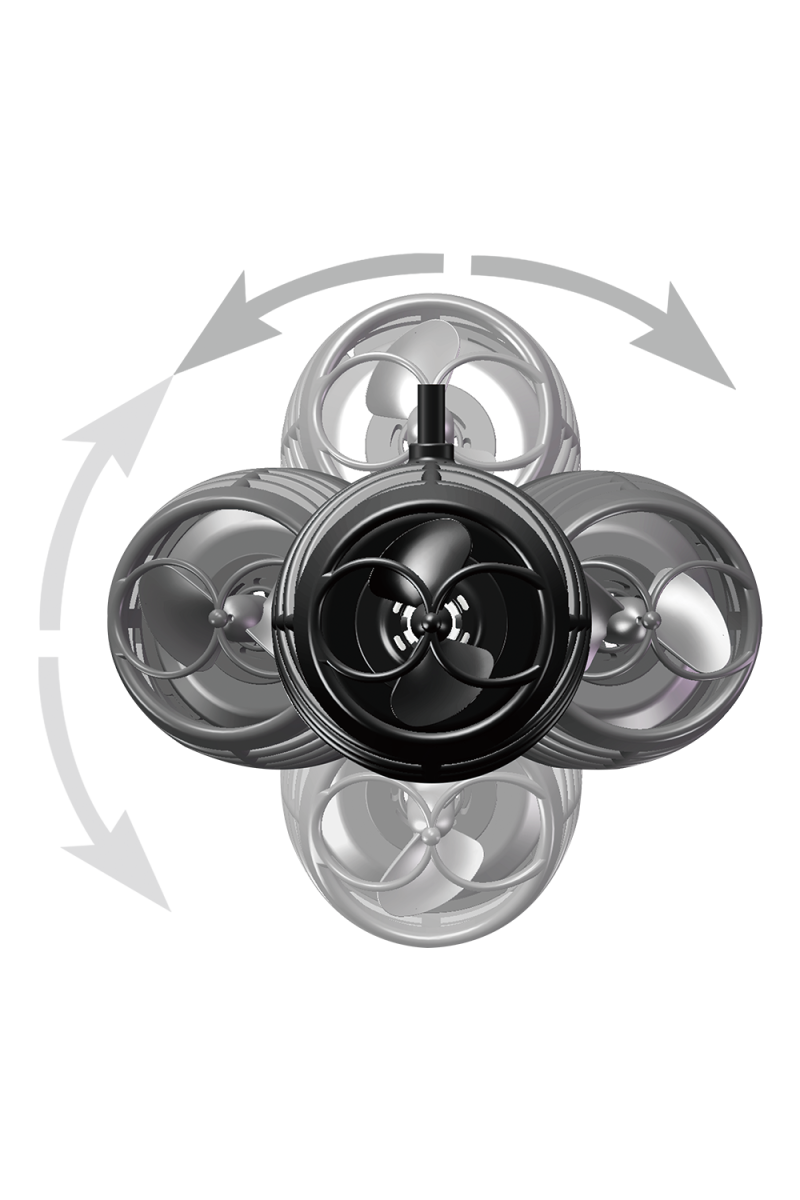

  • 360 degrees range of adjustment
  • Low-profile magnetic mount
  • Neodymium magnets
  • WiFi enable

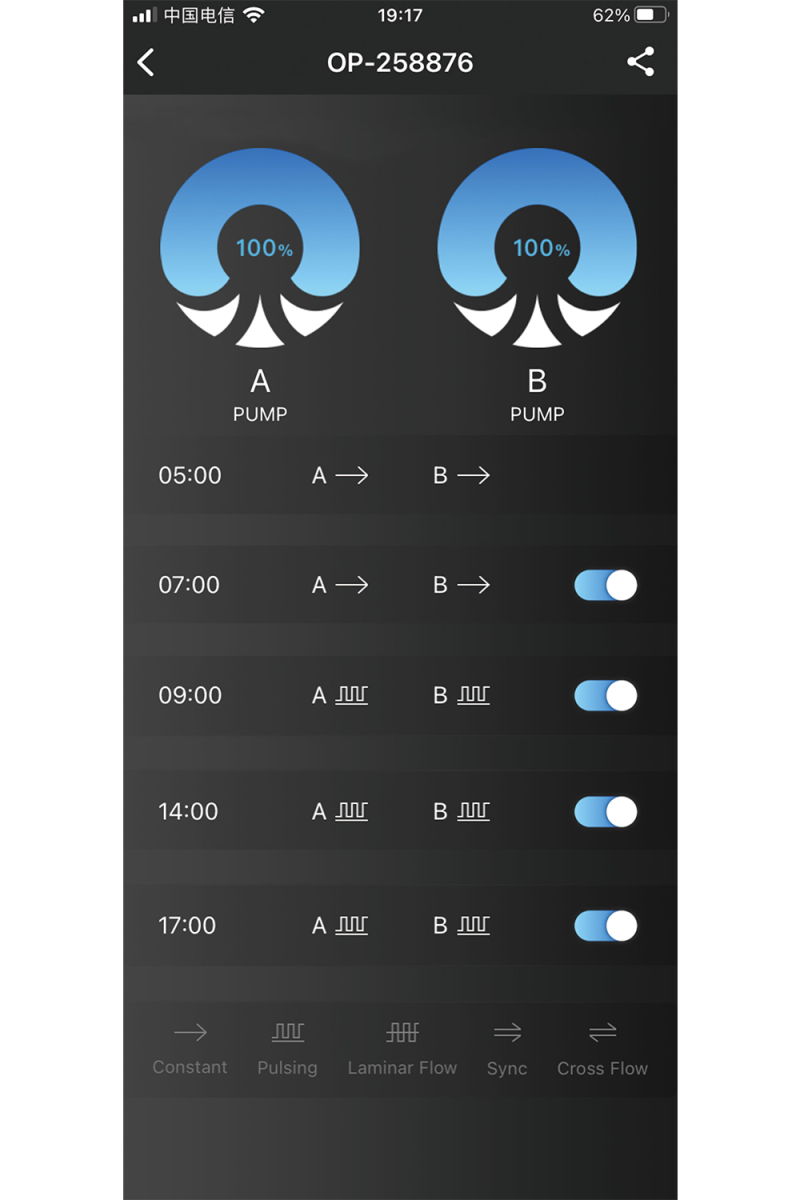

  • App controllable
  • Compact and durable
  • Silent Operation
  • 4 pre-programmed flow patterns
  • Dual feed mode (15 or 60 mins)

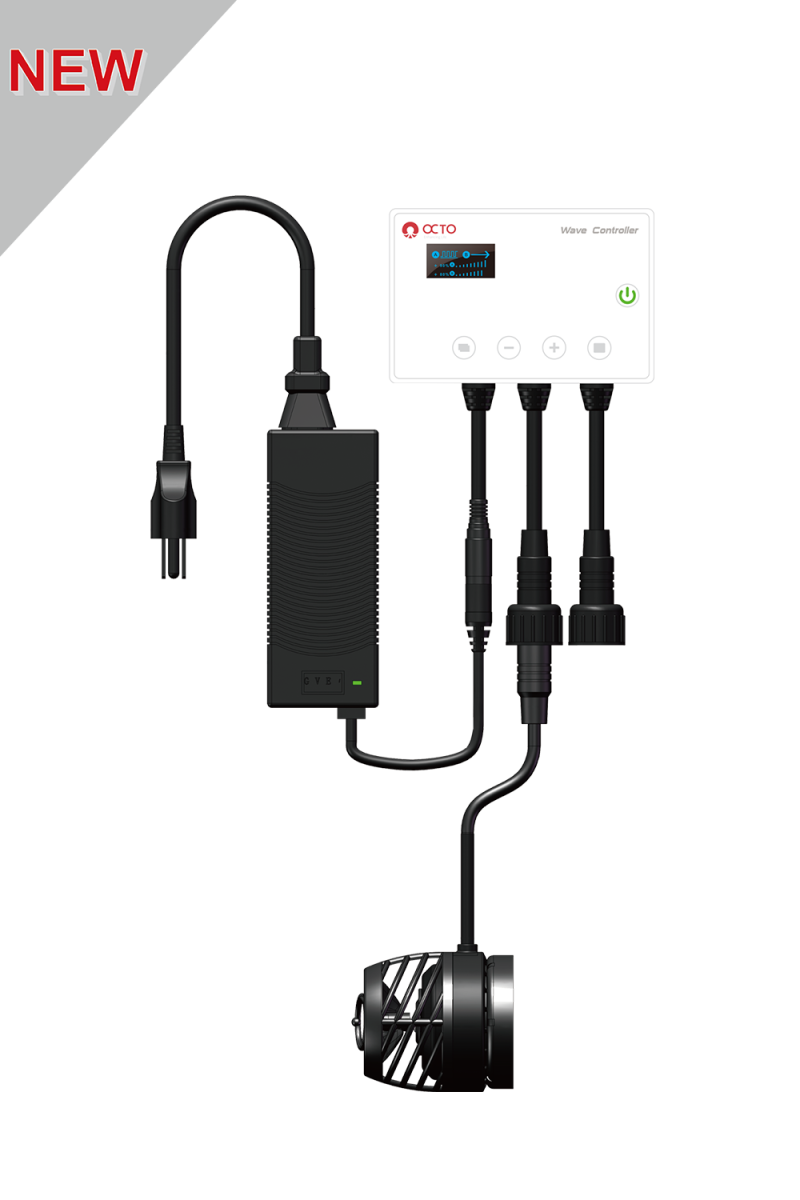

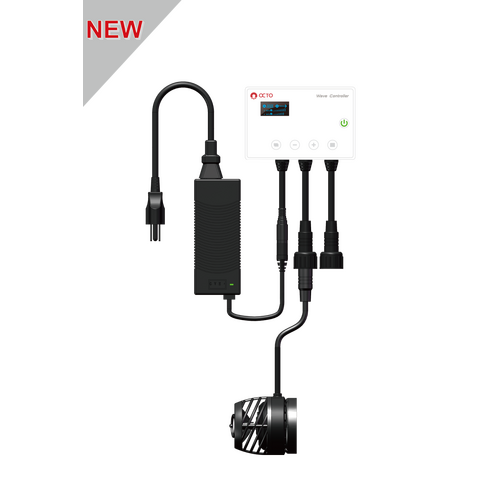

  • Single Controller to control and power 2 wave pumps*

Overview

Introducing our new OCTO Series Direct Current (DC) Wave Pump, OCTO Pulse features Multiple Angles Adjustment, a new WIFI Controller, APP Control and couple with a       0-10V Port, 4 programmable wave patterns, high quality ceramic shaft and bearing to reduce wear and tear, and the latest variable speeds flow technology for refined control, enhanced performance, energy-efficiency and safer operations.

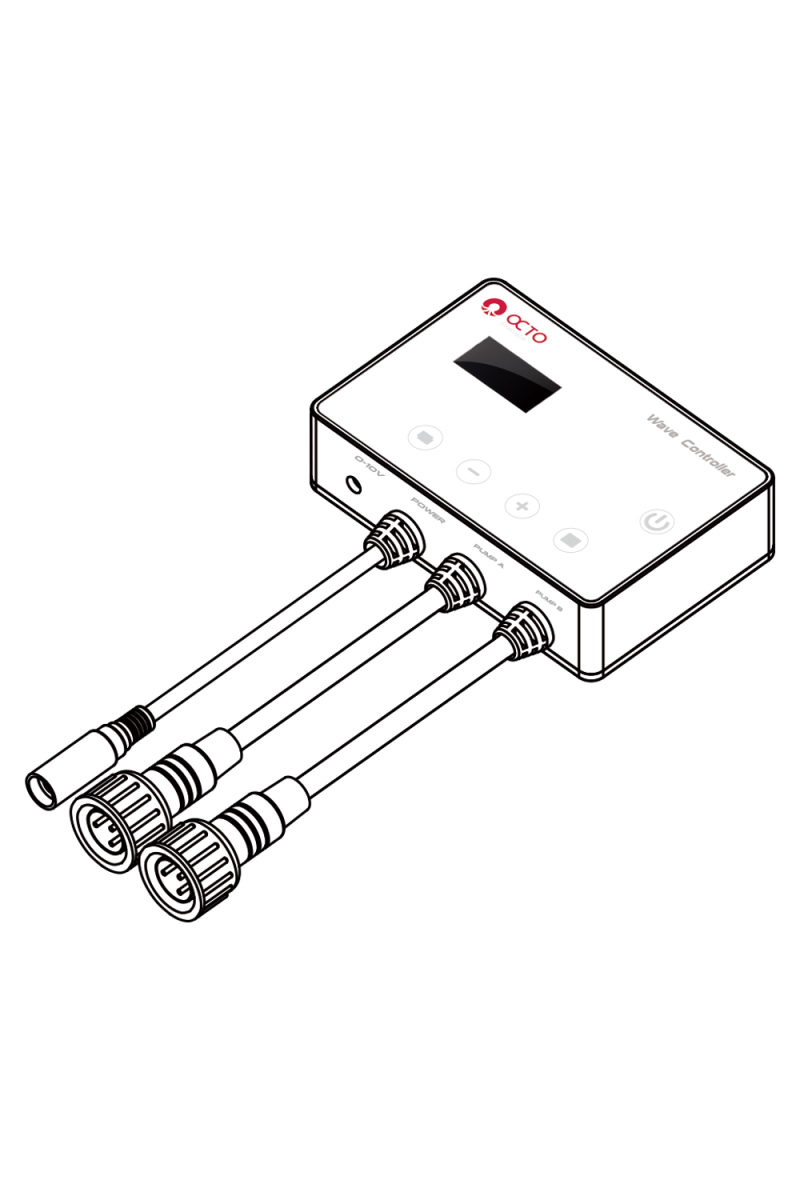

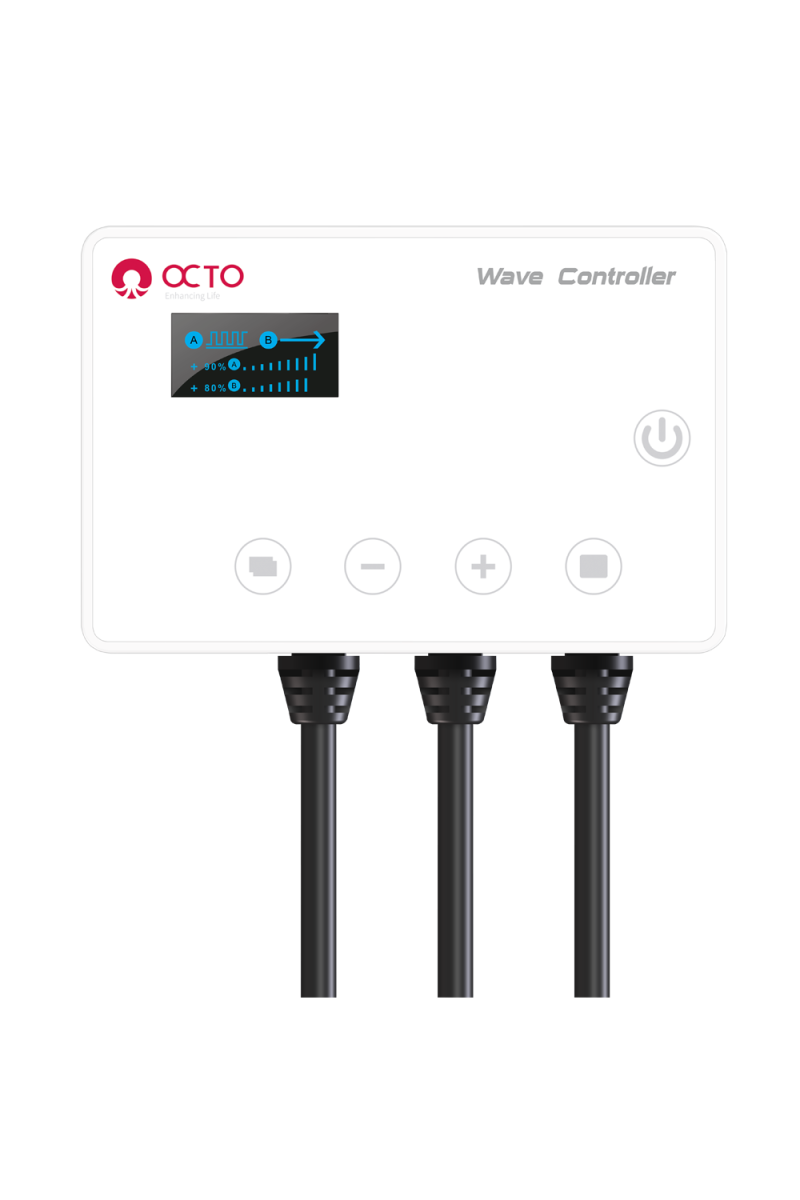

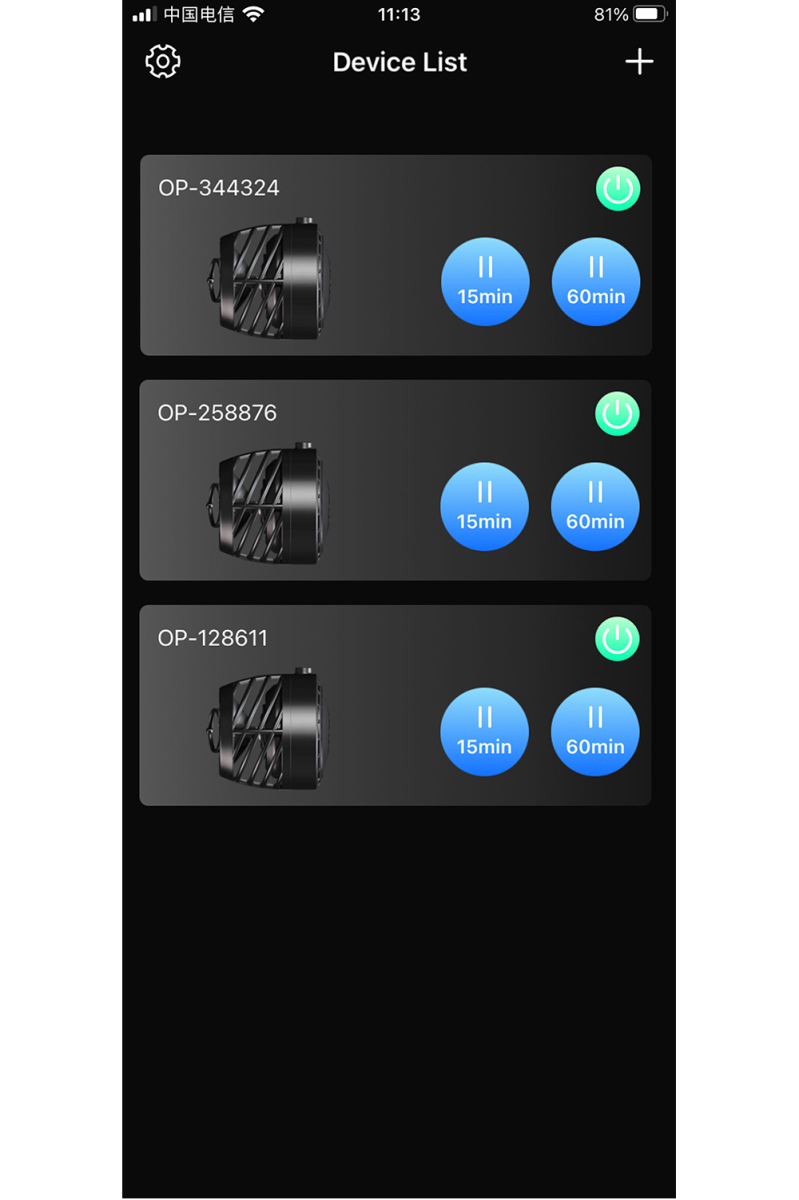

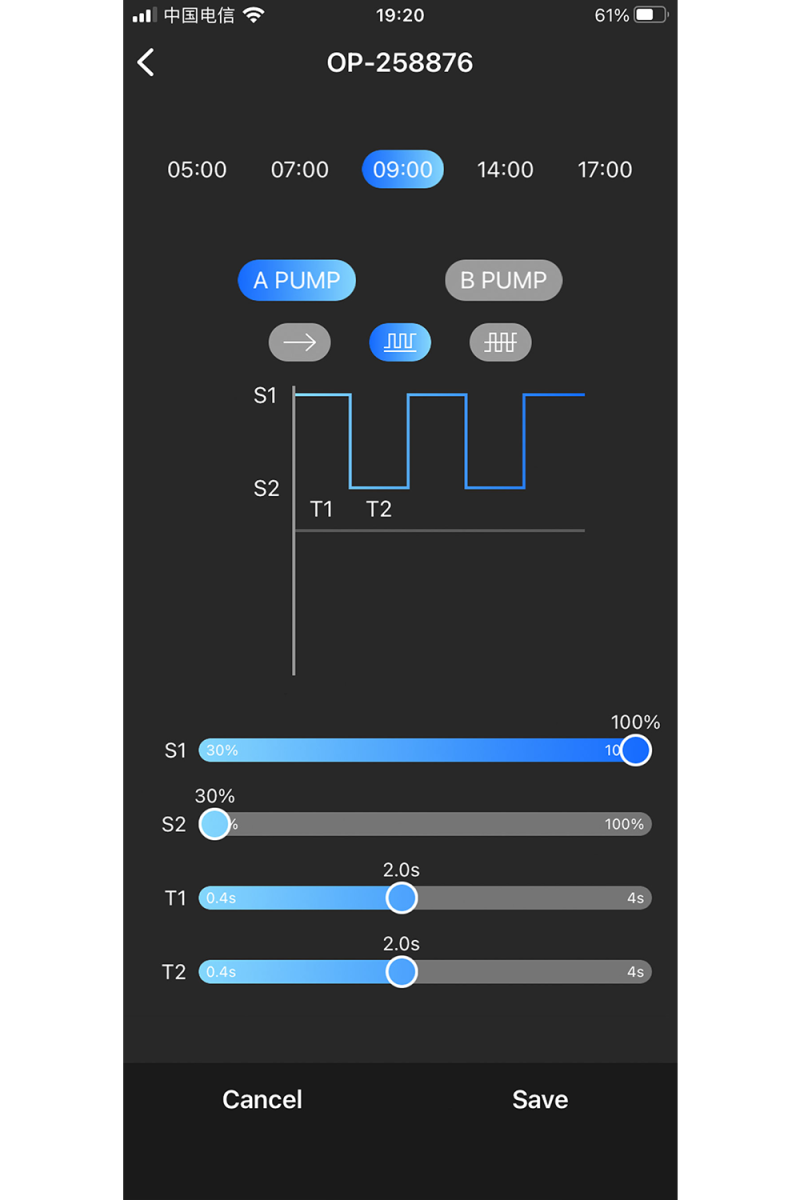

Our New WiFi enable controller can now power *Two Wave Pumps simultaneously and settings between these two wave pumps easily via our bespoke OCTO APP available for both IOS or Android devices.

What's included

    OP-2+ OP-4+
Article Items Item No. Model No. QTY Item No. Model No. QTY
1 Pump body 3010401004 1 3010402003 1
2 Inner Magnet Mount 117156 1 117161 1
3 Outer Magnet Mount 117155 1 117160 1
4 Controller 3010401008 1 3010401008 1
5 Power adapter 117149 DC24V/1.0A 1 1100100007 DC24V/4.0A 1
6 Power Cord 117150 1 117104 1
7 Controller Mounting 4010406001 1 4010406001 1
8 Cable Management Plate 1049900006 21*21 4 1049900006 21*21 4
9 Cable Tie 1049900007 2.5*100 4 1049900007 2.5*100 4
10 Pump Motor 117157 1 117162 1
11 O Ring 117158 57*1.5 1 117163 72.5*1.78 1
12 Impeller rotor 117151 1 117152 1
13 Pump outlet cover 117159 1 117164 1
M Manual 1140300025 OCTO Pulse+ 1 1140300025 OCTO Pulse+ 1



Technical Data

OCTO Pulse+  Wave Pump
Item # Product Maximum Flow Rate Power Tank Water Volume Suggested Tank Size Max Wall Thickness
    LPH GPH w L US GAL cm in mm in
9010407009 OP-2+ 6000 1585 5-10 80-300 21-80 40-100 16-40 12  1/2
9010408009 OP-4+ 17000 4490 11-32 300-1800 80-475 100-180 40-71 15  5/8



Explosion Charts

https://reefoctopus.com/wp-content/uploads/2022/10/OCTO-Pulse-Instruction-Manual.pdf





(9010407009)

SKU 9010407009
Brand OCTO aka Reef Octopus
