Maxspect LAGOON SMART AQUARIUM LS-120B

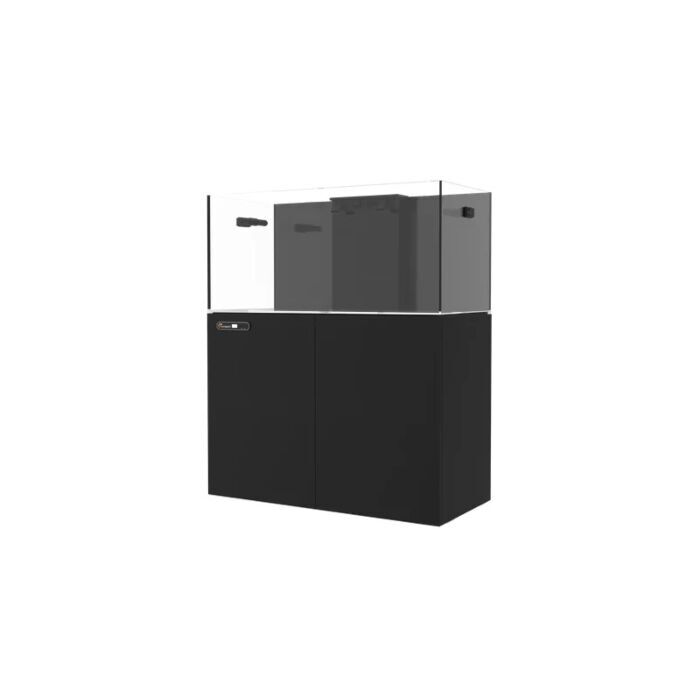

Maxspect LAGOON SMART AQUARIUM LS-120B "BLACK Cabinet"

The Maxspect Lagoon Smart Aquariums are the world’s first set aquarium with an integrated intelligent controller. These systems are cloud enabled allowing you to control your aquarium anytime, anywhere via the Syna-G Cloud app. These aquarium systems have many unique features as you would expect from an innovative company such as Maxspect.

The systems feature a water level controller built into the overflow box (sold seperately) allowing for water level adjustment without having to adjust in the sump area. Another feature of the system is a power management system allowing the whole tank to utilize only two PSU’s, meaning you have far fewer cables laying around for much better cable management.

These aquariums also come with most of the required equipment for running, staring with the Turbine Duo Return Pump, The Turbine Duo has a dual outlet design offering flexible use in many applications such as direct return pump or even one outlet for the return and one running equipment such as Chillers, Calcium Reactors or Bio-Pellet Reactors. Maxspect’s Turbine Duo uses Sine-Wave technology which alternates the electricity in a much smoother pendulum resulting in much less noise to give a near-silent running.

Gyre Flow pumps are also included, the Gyre uses superior cross flow technology combined with sine wave technology with a near-silent operation. The design offers a unique type of linear flow providing more direct flow, usually utilized to throw water across the top of the aquarium effectively creating the gyre effect.

This system does not include lighting, Maxspect believes that lighting is something that is very much based in preference with many lights being available on the market. As a result of the aquarium systems come without lighting to prevent you paying for lighting you may change anyway if you decided you wanted different ones.

At a glance

Tank Dimensions – 120 x 55 x 55 cm

Cabinet Dimensions - 120 x 55 x 87 cm

Tank Volume – 303L

Equipment included – Turbine Duo DC TD-12K Return pump, MJ-GF2k wavemaker x 2, MJ-SK400 skimmer, PVC Sump, Pipework, suspended electrical box, built-in intelligent controller

Cloud enabled aquarium system

12mm Thick glass

Cabinet is made with aerospace grade aluminium framer and a waterproof PVC coated exterior.







Cloud Enabled

With our Syna-G Cloud app, you can take control of your aquarium anytime, anywhere

World's first set aquarium with fully integrated intelligent controller

Protein Skimmer Filtration System

Keep your tank water clean with duo needle-wheel MJ-SK protein skimmer system

More info

Professional LED System (Optional)

Can be Illuminated by MJ-L165 LED*

*The MJ-L165 lights can be purchased as an option and placed on the aquarium to also be controlled by the app.

More info

Gyre Flow System

Oceanic Gyre Flow Simulated by MJ-GF Gyre Pump System

More info

Circulation System

Full tank circulation provided by Turbine Duo pump system

More info

Algae Aquarium System (Optional)

Color spectrum for different species of macroalgae

More info

Professional Supply Water Box (Optional)

The water replenishment box can automatically replenish water to maintain stable water quality and improve the efficiency of aquaculture of marine organism.

Water Change Mode

Feeding Mode

Acclimation Mode

Temperature Monitor

Water Level Monitor

Skimmer Overflow Monitor

One-touch preset options such as:

Photo mode, Fluorescent mode, Night-viewing mode, etc. and more to come!

Fish-only Tank Preset

SPS Dominated Preset

LPS/Mixed Reef Preset

10-15mm (½" -⅝") Ultra white rimless glass tank with reinforced seam

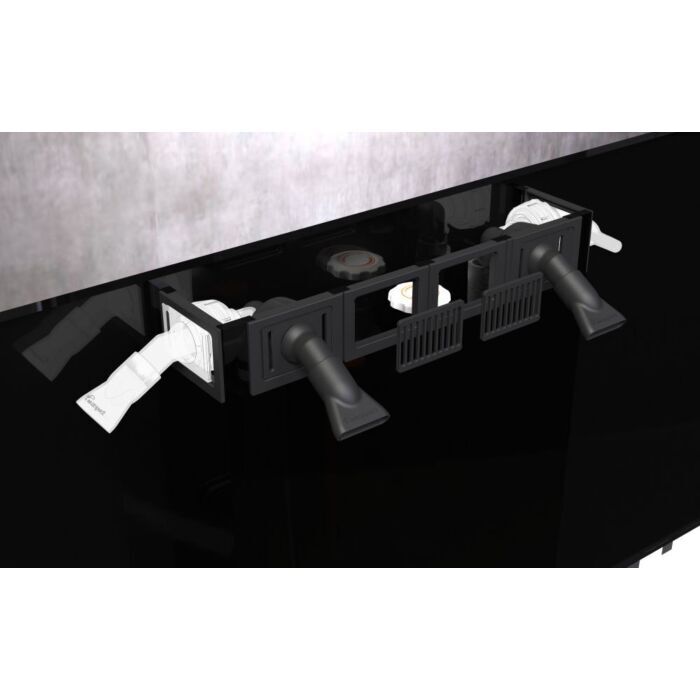

Features a patented water level adjustment valve within the overflow chamber, along with modular overflow weir and water outlet components

Drawer design allows easy access to power supplies and power strip

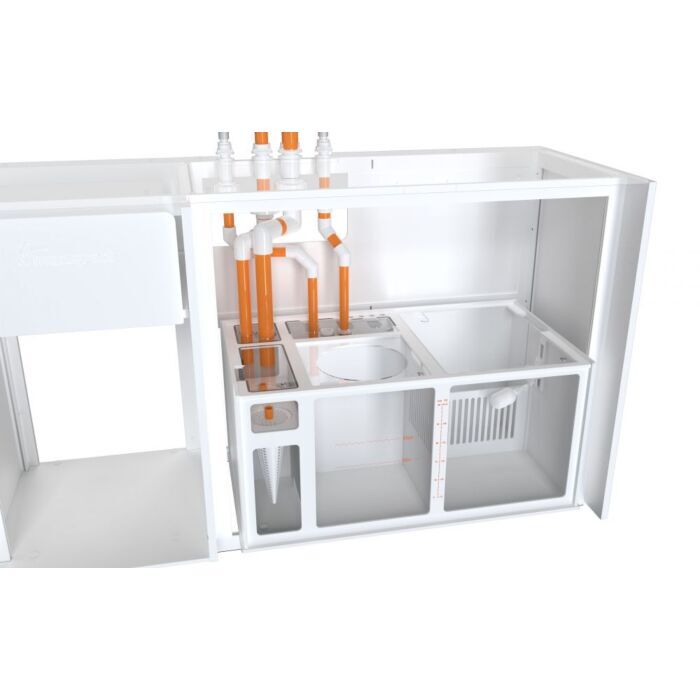

Fully utilized cabinet and sump area, ergonomic design with easy access to all equipment



Cabinet frame made with aerospace grade aluminum with anti-corrosion coating



Ergonomically built PVC sump



High-precision PVC storage tank

Real-time evaporation monitoring, easy cleaning and refilling



Smart App controlled algae LED

Designed with timer on/off and special bracket



Lagoon Series Specification

Colors and Dimensions

Ebony Black

Pearl White

90 Pearl White



•
•
•
•
•
•
•
•

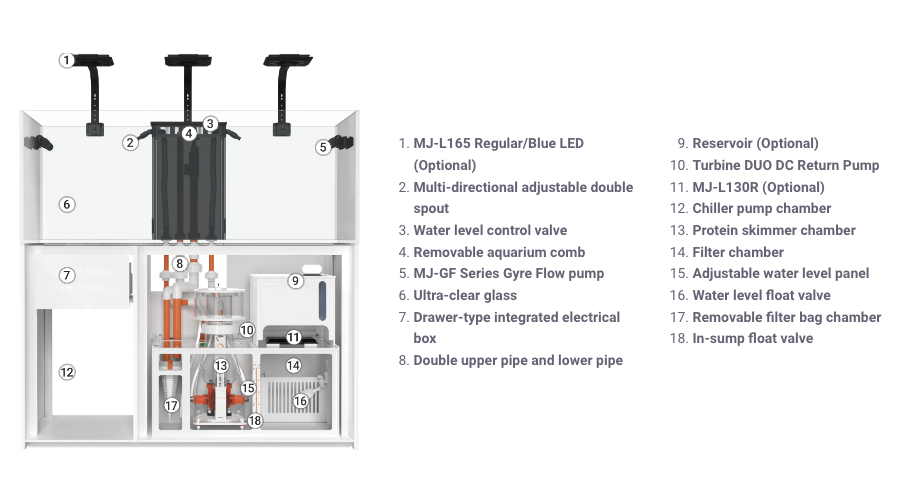

1. MJ-L165 Blue LED
2. Multi-directional adjustable double spout
3. Water level control valve
4. Removable aquarium comb
5. MJ-GF Series Gyre Flow Pump
6. Ultra-clear glass
7. Drawer-type integrated electrical box
8. Double upper pipe and lower pipe
9. Storage tank
10. Turbine Duo DC Return Pump
11. MJ-L130R
12. Chiller pump chamber
13. Protein skimmer chamber
14. Filter chamber
15. Adjustable water level panel
16. Water level float valve
17. Removable filter bag chamber
18. In-sump float valve

Lagoon Series Specification Table
Category	Specification	Description	LS-060	LS-090
Equipment specification	Lighting system	Jump MJ-L165 LED Blue Edition	Optional	Optional
	Lighting energy consumption	MJ-L165: 65w	65w	130w
	Gyre flow circulation system	Jump MJ-GF2K Gyre Flow Pump	1 unit
		Jump MJ-GF4K Gyre Flow Pump		1 unit
	Circulation energy consumption	MJ-GF2K: 25w	25w
		MJ-GF4K: 45w		45w
	Circulation flow rate	MJ-GF2K: 7,000 L/h	7,000 L/h (1,849 G/h)
		MJ-GF4K: 15,000 L/h		15,000 L/h (3,963 G/h)
	Return pump system	Turbine Duo DC Return Pump	TD-6Kx1	TD-9kx1
	Return pump energy consumption		TD-6K: 46w	TD-9K: 66w
	Return pump flow rate		6,500 L/h (1,717 G/h)	9,000 L/h (2,378 G/h)
	Protein skimmer system	Jump MJ-SK Series Protein Skimmer	MJ-SK400x1
	Protein skimmer energy consumption		MJ-SK400: 25w
	Protein skimmer efficiency		1,000 /h (264 G/h)
	Algae LED lighting system	MJ-L130R: 30w	Optional	Optional
Main specification	Filtration system	Micron filter	2 units	2 units
	Integrated central controller	Integrated Controller, supports Syna-G Cloud app (iOS, Android)	√	√
	Integrated central controller	Power supply	150w x 2	150w x 2
			24V6A x 2	24V6A x 2
	Temperature monitoring system	Temperature monitoring for display tank and sump	√	√
	Water level monitoring system	Water level monitoring sensor	√	√
	Integrated water top up system	In-sump float valve	√	√
		Storage tank	Optional	Optional
		Storage tank volume	6L/1.5gal	6L/1.5gal
	Surface oil film collector	Built-in surface oil film collector	√	√
	Sump tank internal	Removable filter bag chamber	√	√
		Adjustable height panel of the skimmer chamber	√	√
	Cabinet internal	Electrical box (with equipment assembly kit)	Suspended electrical box
	Cabinet frame	PVC profile designed specifically for marine aquarium	√	√
	Cabinet panel	Professionally designed panels		√
	Display tank glass thickness	Ultra-clear glass for front and sides	10mm/⅜"	12mm/½"
	Display tank volume	Display tank with overflow chamber	122L/32.3gal	184L/48.6gal
	Sump tank volume	PVC sump for filtration reactors or refugium	68L / 17.9 gal	68L / 17.9 gal
	Total volume	Combined aquarium and sump	190L / 50.2gal	252L / 66.5gal
Display tank specification	Length		60cm	90cm
			24"	36"
	Width		50cm	50cm
			20"	20"
	Height		50cm	50cm
			20"	20"
	Water level		44cm	44cm
			18"	18"
Cabinet specification	Length		60cm	90cm
			24"	36"
	Width		50cm	50cm
			20"	20"
	Height		87cm	87cm
			35"	35"
	Overall Height (Including display tank)		137cm	137cm
			54"	54"
	Chiller section dimension		—	31x47x55cm
			—	12¼"x18½"x21½"
	Pipe fittings dimension	Outer diameter of pipe fittings	Upper pipe (25mm) Lower pipe (40mm) Sub-lower pipe (32mm)
			Upper pipe (1") Lower pipe (1½) Sub-lower pipe (1¼")
Sump tank specification	Length		47cm	47cm
			19"	29"
	Width		45cm	45cm
			18"	18"
	Height		39.5cm	39.5cm
			16"	16"
	Return pump chamber dimension		23 x 14cm	23 x 14cm
			9"x5½"	9"x5½"
	Multi-purpose  chamber dimension		27 x 15.6cm	27 x 15.6cm
			10½"x6¼"	10½"x6¼"
		Refugium chamber	—	—
			—	—
		Chiller pump chamber	—	—
			—	—
	Reactors and other  devices chamber		14.7 x 11.7cm	14.7 x 11.7cm
			5¾"x4½"	5¾"x4½"
	Protein skimmer chamber dimension		27.8x27.2cm	27.8x27.2cm
			11"x9½"	11"x9½"
	Protein skimmer chamber water level	Range of the adjustable height panel	16-24cm	16-24cm
			6¼"-9½"	6¼"-9½"

---

Lagoon Series Specification Table
Category	Specification	Description	LS-120	LS-150
Equipment specification	Lighting system	Jump MJ-L165 LED Blue Edition	Optional	Optional
	Lighting energy consumption	MJ-L165: 65w	195w	260w
	Gyre flow circulation system	Jump MJ-GF2K Gyre Flow Pump	2 units
		Jump MJ-GF4K Gyre Flow Pump		2 units
	Circulation energy consumption	MJ-GF2K: 25w	50w
		MJ-GF4K: 45w		90w
	Circulation flow rate	MJ-GF2K: 7,000 L/h	14,000 L/h 3,698 G/h
		MJ-GF4K: 15,000 L/h		30,000 L/h (7,925 G/h)
	Return pump system	Turbine Duo DC Return Pump	TD-12Kx1
	Return pump energy consumption		TD-12K: 110w
	Return pump flow rate		12,000 L/h (3,170 G/h)
	Protein skimmer system	Jump MJ-SK Series Protein Skimmer	MJ-SK400x1	MJ-SK800x1
	Protein skimmer energy consumption		MJ-SK400: 25w	MJ-SK800: 45w
	Protein skimmer efficiency		1,000 /h (264 G/h)	2,700 L/h (713 G/h)
	Algae LED lighting system	MJ-L130R: 30w	Optional	Optional
Main specification	Filtration system	Micron filter	2 units	2 units
	Integrated central controller	Integrated Controller, supports Syna-G Cloud app (iOS, Android)	√	√
	Integrated central controller	Power supply	195w x 2	192w x 2
			24V8A x 2	24V8A x 2
	Temperature monitoring system	Temperature monitoring for display tank and sump	√	√
	Water level monitoring system	Water level monitoring sensor	√	√
	Integrated water top up system	In-sump float valve	√	√
		Storage tank	Optional	Optional
		Storage tank volume	9L/2.5gal	9L/2.5gal
	Surface oil film collector	Built-in surface oil film collector	√	√
	Sump tank internal	Removable filter bag chamber	√	√
		Adjustable height panel of the skimmer chamber	√	√
	Cabinet internal	Electrical box (with equipment assembly kit)	Drawer-type electric box
	Cabinet frame	PVC profile designed specifically for marine aquarium	√	√
	Cabinet panel	Professionally designed panels	√	√
	Display tank glass thickness	Ultra-clear glass for front and sides	12mm/½"	15mm/⅝"
	Display tank volume	Display tank with overflow chamber	303L/80gal	375L/99gal
	Sump tank volume	PVC sump for filtration reactors or refugium	110L / 29.1gal	110L / 29.1gal
	Total volume	Combined aquarium and sump	413L / 109.1gal	511L / 134.9gal
Display tank specification	Length		120cm	150cm
			48"	60"
	Width		55cm	55cm
			22"	22"
	Height		55cm	55cm
			22"	22"
	Water level		49cm	49cm
			20"	20"
Cabinet specification	Length		120cm	150cm
			48"	60"
	Width		55cm	55cm
			22"	22"
	Height		87cm	87cm
			35"	35"
	Overall Height (Including display tank)		142cm	142cm
			56"	56"
	Chiller section dimension		32x51x55cm	43x51x55cm
			12½"x20"x21½"	17"x20"x21½"
	Pipe fittings dimension	Outer diameter of pipe fittings	Upper pipe (25mm) Lower pipe (40mm) Sub-lower pipe (32mm)
			Upper pipe (1") Lower pipe (1½) Sub-lower pipe (1¼")
Sump tank specification	Length		68cm	85.6cm
			27"	34"
	Width		49cm	49cm
			20"	20"
	Height		39cm	39cm
			16"	16"
	Return pump chamber dimension		31 x 17cm	31 x 17cm
			12¼"x6¾"	12¼"x6¾"
	Multi-purpose  chamber dimension		45.8 x 18.6cm	45.8 x 18.6cm
			18"x7¼"	18"x7¼"s
		Refugium chamber	18.6 x 28cm	36 x 28cm
			7¼" x11"	14¼" x11"
		Chiller pump chamber	18.6 x 17.2cm	36 x 17.2cm
			7¼" x6¾"	14¼" x6¾"
	Reactors and other  devices chamber		28x14.5x26cm	28x14.5x26cm
			11"x5¾"x10¼"	11"x5¾"x10¼"
	Protein skimmer chamber dimension		31x28cm	31x28cm
			17"x11½"	17"x11½"
	Protein skimmer chamber water level	Range of the adjustable height panel	16-24cm	16-24cm
			6¼"-9½"	6¼"-9½"
