AQUASKY G 301/361/451/601/602

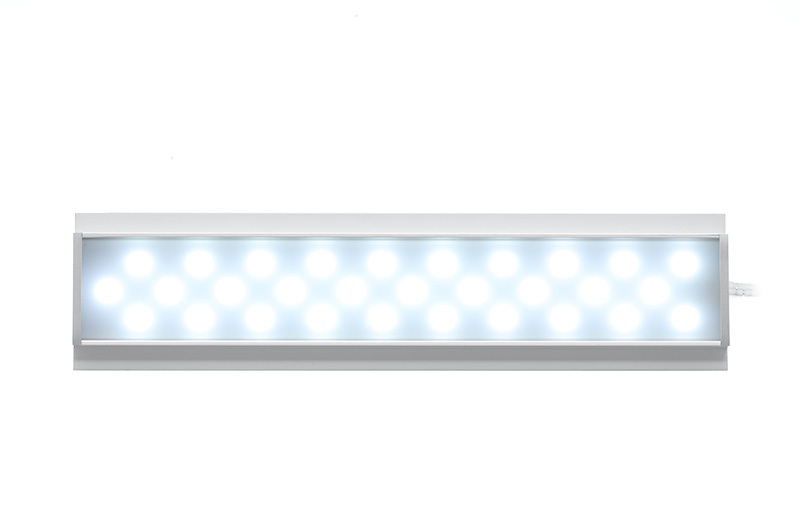

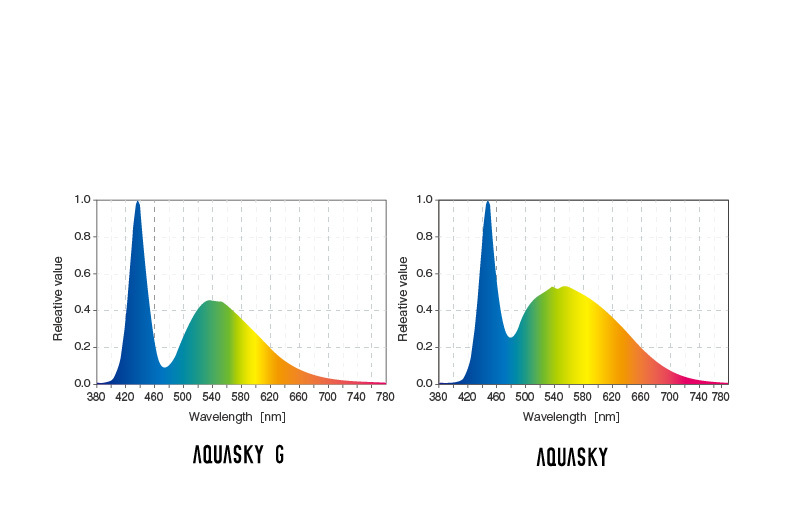

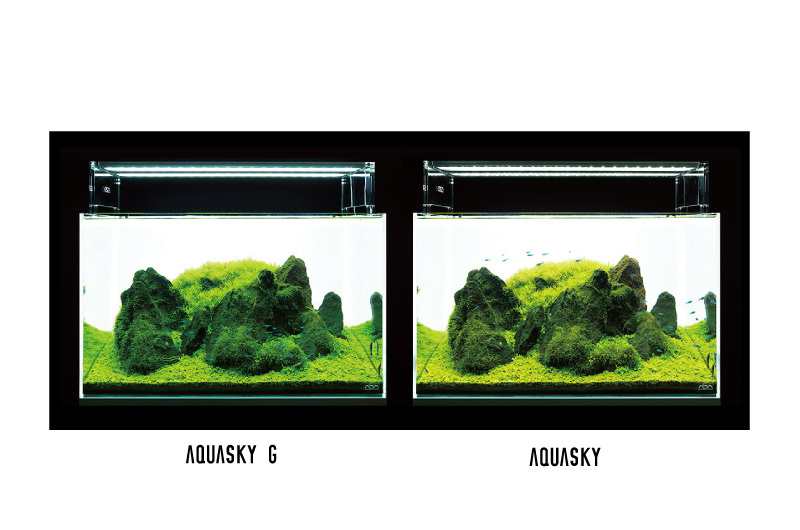

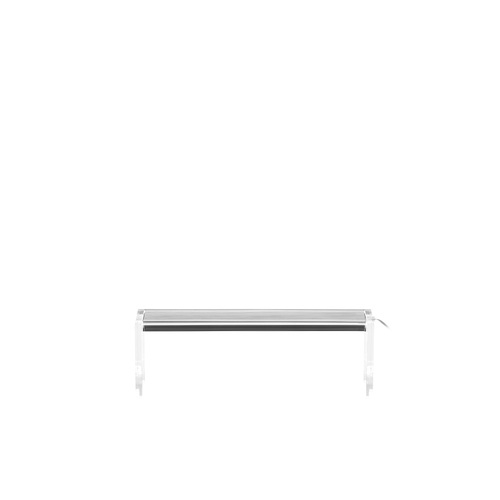

AQUASKY G is an LED lighting system designed for W60cm or smaller aquarium tanks. With the use of high-luminosity white LED light with an enhanced green color spectrum, AQYASKY G can brightly illuminate the aquarium at less power consumption and makes the green color of aquatic plants look more vivid. Its slim lighting unit features excellent heat dissipation. When installed on the stand, AQUASKY G naturally blends in with surroundings and gives an open atmosphere above the aquarium.

Common feature／
*AQUASKY G is NOT compatible with Cube Garden Superior series.

301
STAND size：W300×D100×H95mm
Input voltage：AC100〜240V　50／60Hz
Power consumption：15W
Current consumption：400mA±5%
Luminous flux：900〜1,200lm
Color temperature：Around 7,000～8,000K (Due to the nature of LED lighting, there are variation in color temperature.)
LED：0.4W/each×30
LED lifetime：Over 30,000hrs (subject to operating environment)
Operating temperature range：0〜35℃

Article Code	Item	Compatible tank size	-
108-115	AQUASKY G 301	W30×D30×H30cm(Glass thickness 5mm) W30×D18×H24cm(Glass thickness 5mm)	-

361
STAND size：W360×D100×H95mm
Input voltage：AC100〜240V　50／60Hz
Power consumption：15W
Current consumption：400mA±5%
Luminous flux：900〜1,200lm
Color temperature：Around 7,000～8,000K (Due to the nature of LED lighting, there are variation in color temperature.)
LED：0.4W/each×30
LED lifetime：Over 30,000hrs (subject to operating environment)
Operating temperature range：0〜35℃

Article Code	Item	Compatible tank size	-
108-116	AQUASKY G 361	W36 × D22 × H26cm (Glass thickness 5mm)	-

451
STAND size：W450×D100×H95mm
Input voltage：AC100〜240V　50／60Hz
Power consumption：22W
Current consumption：650mA±5%
Luminous flux：1,400〜1,600lm
Color temperature：Around 7,000～8,000K (Due to the nature of LED lighting, there are variation in color temperature.)
LED：0.4W/each×45
LED lifetime：Over 30,000hrs (subject to operating environment)
Operating temperature range：0〜35℃

*NOT compatible with tank W45×D30×H45cm and W45×D45×H45cm with glass thickness of 6mm.

Article Code	Item	Compatible tank size	-
108-117	AQUASKY G 451 (This product is available from the Winter, 2017)	W45×D24×H16cm(Glass thickness 5mm) W45×D27×H30cm(Glass thickness 5mm)	-

601
STAND size：W600×D94×H120mm
Input voltage：AC100〜240V　50／60Hz
Power consumption：30W
Current consumption：900mA±5%
Luminous flux：1,800〜2,100lm
Color temperature：Around 7,000～8,000K (Due to the nature of LED lighting, there are variation in color temperature.)
LED：0.4W/each×63
LED lifetime：Over 30,000hrs (subject to operating environment)
Operating temperature range：0〜35℃

*NOT compatible with tank W60×D45×H45cm with glass thickness of 8mm.

Article Code	Item	Compatible tank size	-
108-118	AQUASKY G 601 (This product is available from the Late April, 2017)	W60×D30×H18cm(Glass thickness 5mm) W60×D30×H36cm(Glass thickness 6mm) W60×D30×H45cm(Glass thickness 6mm)	-

602（per lighting unit）
STAND size：W600×D188×H120mm
Input voltage：AC100〜240V　50／60Hz
Power consumption：30W
Current consumption：900mA±5%
Luminous flux：1,800〜2,100lm
Color temperature：Around 7,000～8,000K (Due to the nature of LED lighting, there are variation in color temperature.)
LED：0.4W/each×63
LED lifetime：Over 30,000hrs (subject to operating environment)
Operating temperature range：0〜35℃

*NOT compatible with tank W60×D45×H45cm with glass thickness of 8mm.
* AQUASKY G 602 comes with 2 adapters.

Article Code	Item	Compatible tank size	-
108-119	AQUASKY G 602 (This product is available from the Late April, 2017)	W60×D30×H18cm(Glass thickness 5mm) W60×D30×H36cm(Glass thickness 6mm) W60×D30×H45cm(Glass thickness 6mm)	-
